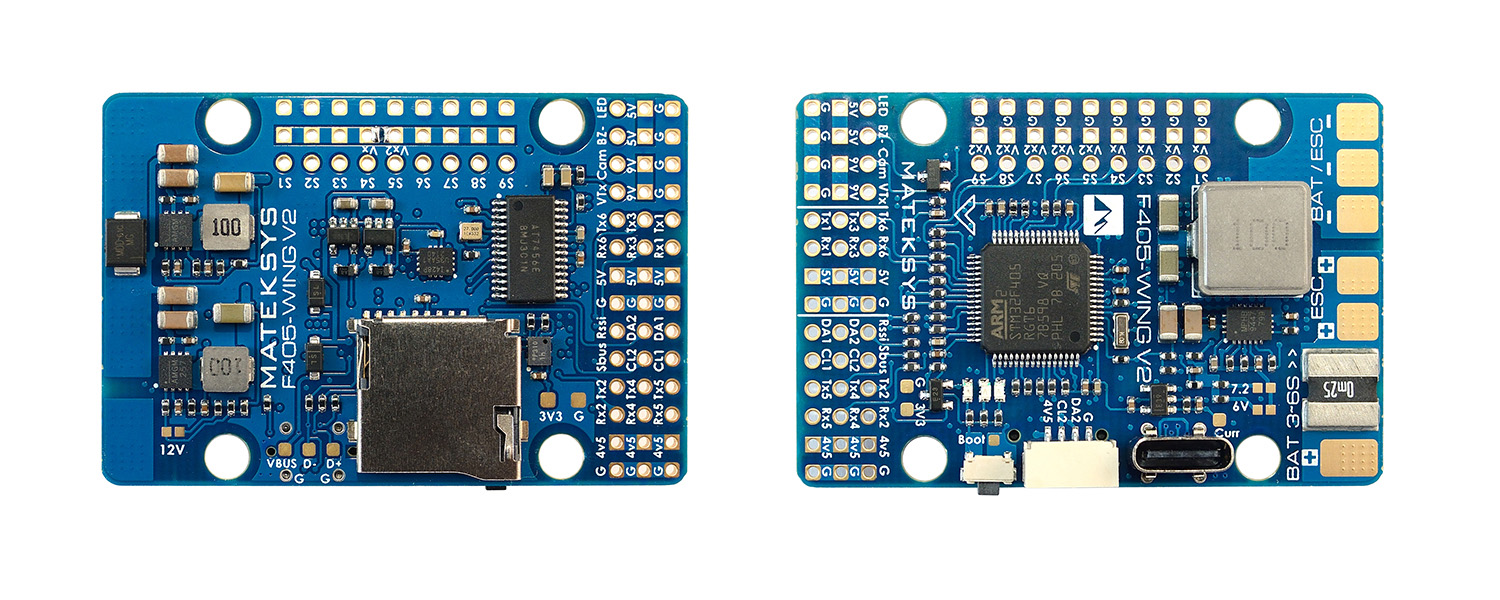

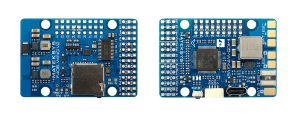

The Matek F405-Wing-V2 is a dedicated fixed-wing and VTOL flight controller built around the STM32F405 processor. Designed for ArduPlane and INAV firmware, it features 10 PWM outputs for servo and motor control, a built-in current sensor rated at 100A continuous and 220A peak, and three onboard BECs for powering FC, servos, and VTX independently. The V2 revision brings USB Type-C, an upgraded ICM42688-P IMU, DPS310 barometer, and increased current sensing capacity over the original F405-Wing. A popular choice for fixed-wing FPV builds, gliders, and VTOL aircraft requiring reliable long-range navigation support.
